56 Datasheet

Intel

Celeron

Processor up to 1.10 GHz

NOTES:

1. Unless otherwise noted, all guidelines in this table apply to all Celeron processor frequencies.

2. Guidelines are for the edge rate of 0.3 – 0.8 V/ns. See Figure 13 for the generic waveform.

3. All values specified by design characterization.

4. This guideline applies to Intel Celeron processors operating with a 66 MHz system bus only.

5. Ringback below V

REF + 250 mV is not supported.

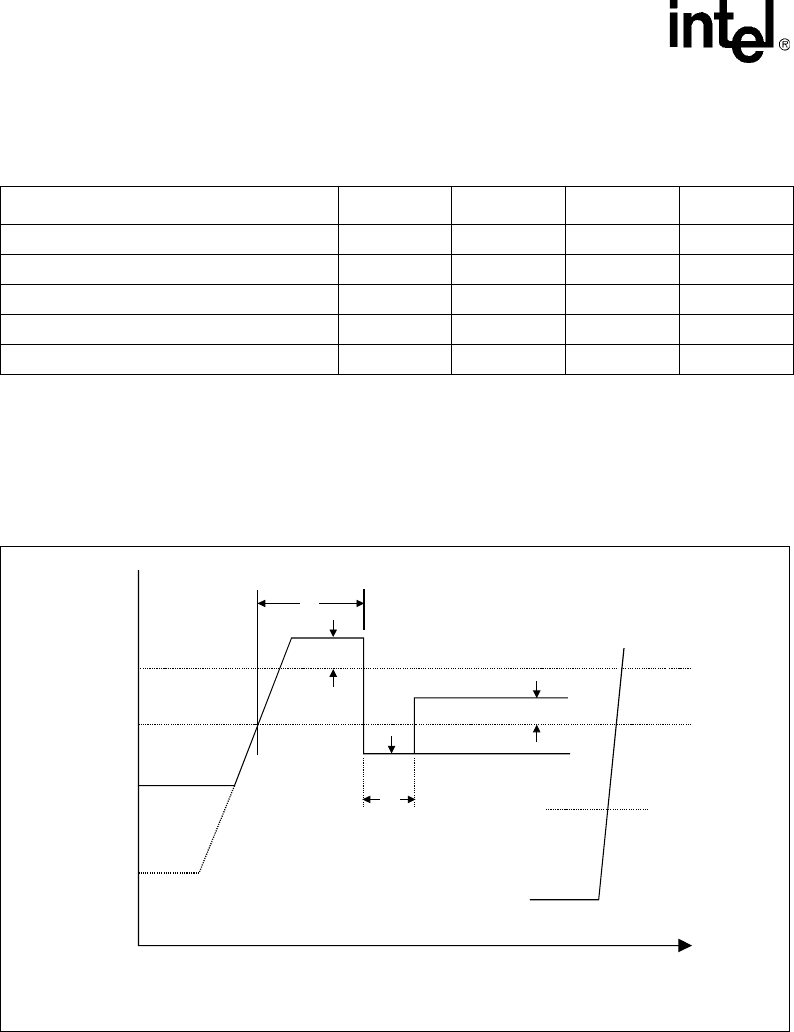

Table 33. AGTL+ Signal Groups Ringback Tolerance Guidelines for Edge Finger

Measurement on the S.E.P. Package

T# Parameter Min Unit Figure Notes

’: Overshoot 100 mV 13

τ’: Minimum Time at High 1.5 ns 13 4

ρ’: Amplitude of Ringback –250 mV 13 4, 5

φ’: Final Settling Voltage 250 mV 13 4

δ’: Duration of Squarewave Ringback N/A ns 13

Figure 13. Low to High AGTL+ Receiver Ringback Tolerance

start

V +0.2

REF

V –0.2

REF

Time

Clock

Note: High to Low case is analogous.

0.7V Clk Ref

1 2 ... 51 52 53 54 55 56 57 58 59 60 61 ... 127 128
