6.1.2 Mechanical Specifications for the PPGA Package

This section documents the mechanical specifications for the fan heatsink of the boxed Celeron

processor in the PPGA package. The boxed processor in the PPGA package ships with an

unattached fan heatsink which has an integrated clip. Figure 34 shows a mechanical representation

of the boxed Intel Celeron processor in the PPGA package.

Note that the airflow of the fan heatsink is into the center and out of the sides of the fan heatsink.

Clearance is required around the fan heatsink to ensure unimpeded airflow for proper cooling. The

space requirements and dimensions for the boxed processor with an integrated fan heatsink are

shown in Figure 35. All dimensions are in inches.

Note: The heatsink airflow keepout zones found in Figure 39 refer specifically to the boxed processor’s

active fan heatsink. This does not reflect the worst-case dimensions that may exist with other third

party passive or active fan heatsinks.

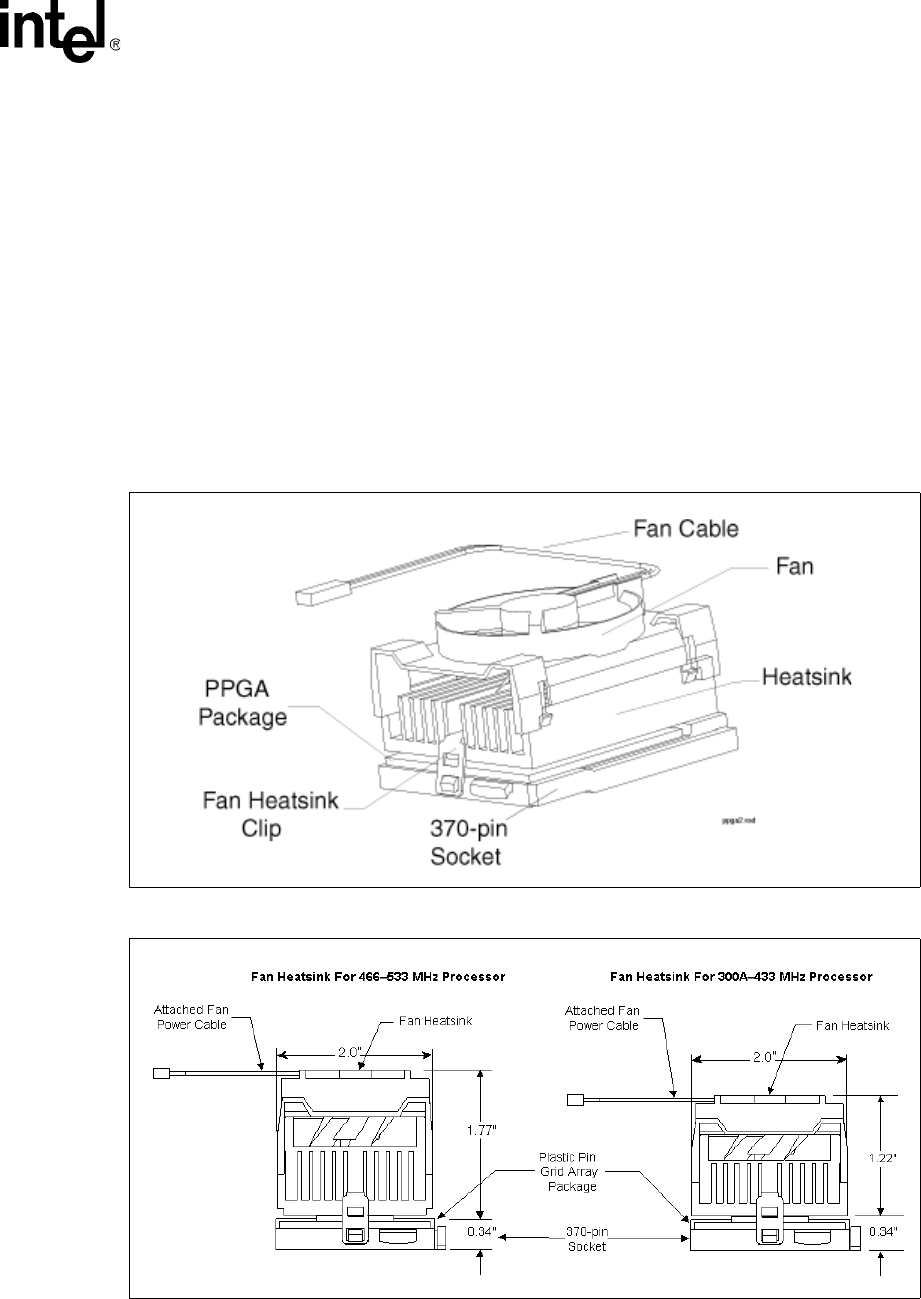

Figure 34. Boxed Intel

Celeron

Processor in the PPGA Package

Figure 35. Side View Space Requirements for the Boxed Processor in the PPGA Package
