SRPL8 Server System Product Guide 95

Removing and Installing the Front Bezels

See Figure 20.

1. Use the finger grips to pull the bezels away from the chassis.

2. Remove the bottom bezel to access the hot-swap drives and the peripheral bay.

3. Remove the top bezel to access the following:

• Front side of the fan bay.

• Front panel controller switches (power, reset, and nonmaskable interrupt (NMI) and

indicator lights (power indicator, predictive power supply failure, predictive fan failure,

and hard drive failure).

4. Reinstall the bottom bezel by aligning the clips with the ball studs on the chassis and pushing

the bezel onto the chassis.

5. Reinstall the top bezel by aligning the ball studs with the clips on the chassis and pushing the

bezel onto the chassis.

OM10705

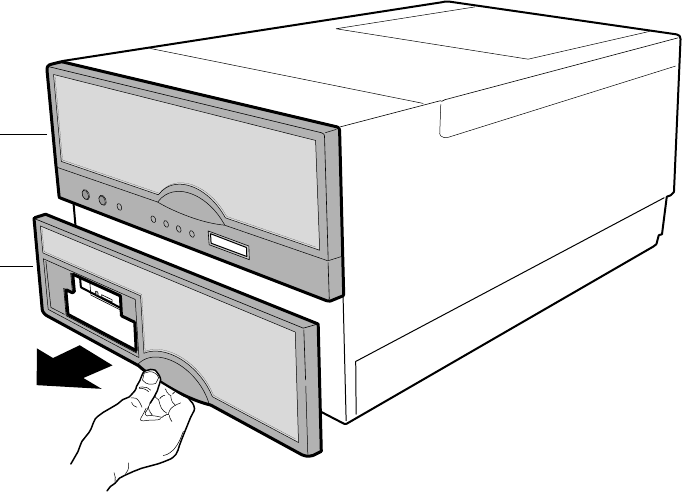

Figure 20. Removing the Front Bezels

A. Bottom Bezel

B. Top Bezel
