UPI-C42/UPI-L42

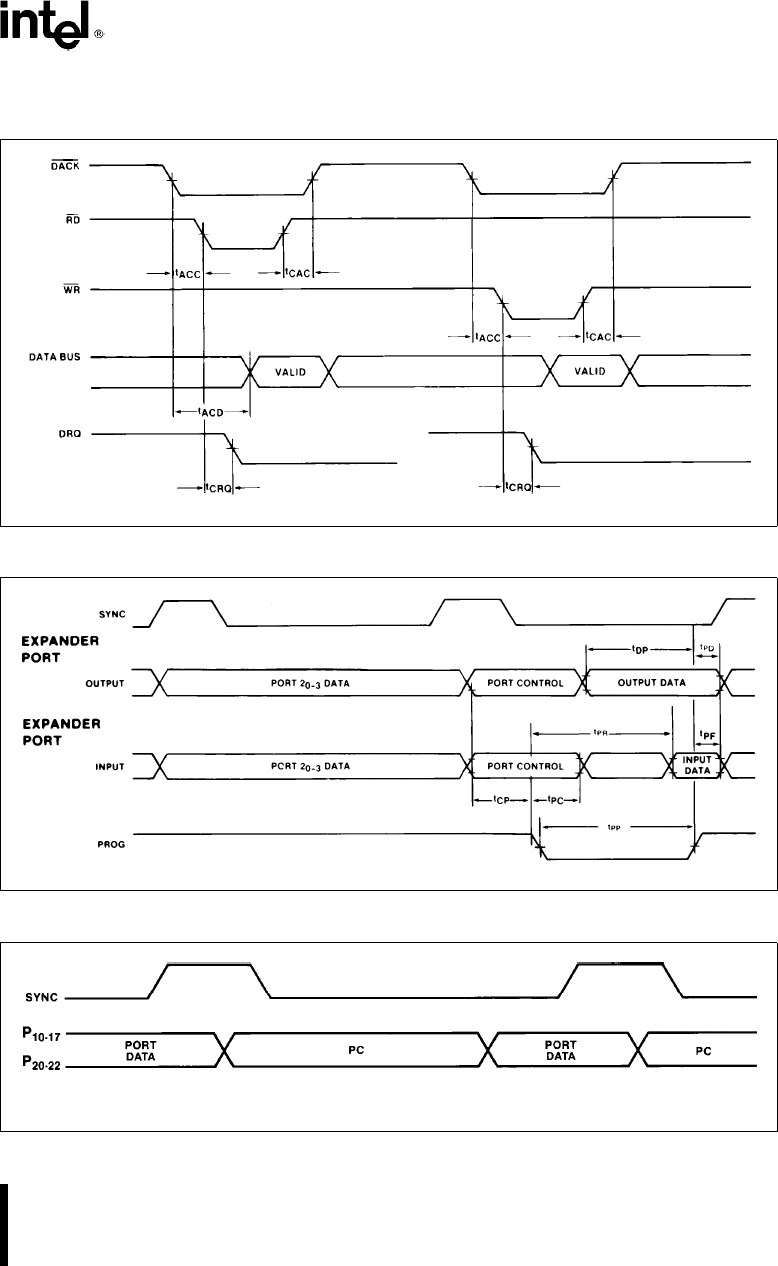

WAVEFORMS (Continued)

DMA

290414–27

PORT 2

290414–28

PORT TIMING DURING EXTERNAL ACCESS (EA)

290414–29

On the Rising Edge of SYNC and EA is Enabled, Port Data is Valid and can be Strobed. On the Trailing Edge of Sync

the Program Counter Contents are Available.
