Viglen SX220 User Guide 92

Buttons

• >>: Moves all the events from the enabled listbox to the disabled listbox.

• >: Moves the selected event from the enabled listbox to the disabled listbox.

• <: Moves the selected event from the disabled listbox to enabled the listbox.

• <<: Moves all the events from the disabled listbox to the enabled listbox.

• Save: Allows you to save the configuration immediately.

• Close: Allows you to close the Platform Event Action dialog without saving

changes. If you have made changes, you will be prompted to save changes

before closing.

• Help: Displays help information.

Emergency Management Port Dialog

This dialog allows you to configure the Emergency Management Port features. (See

Figure 47)

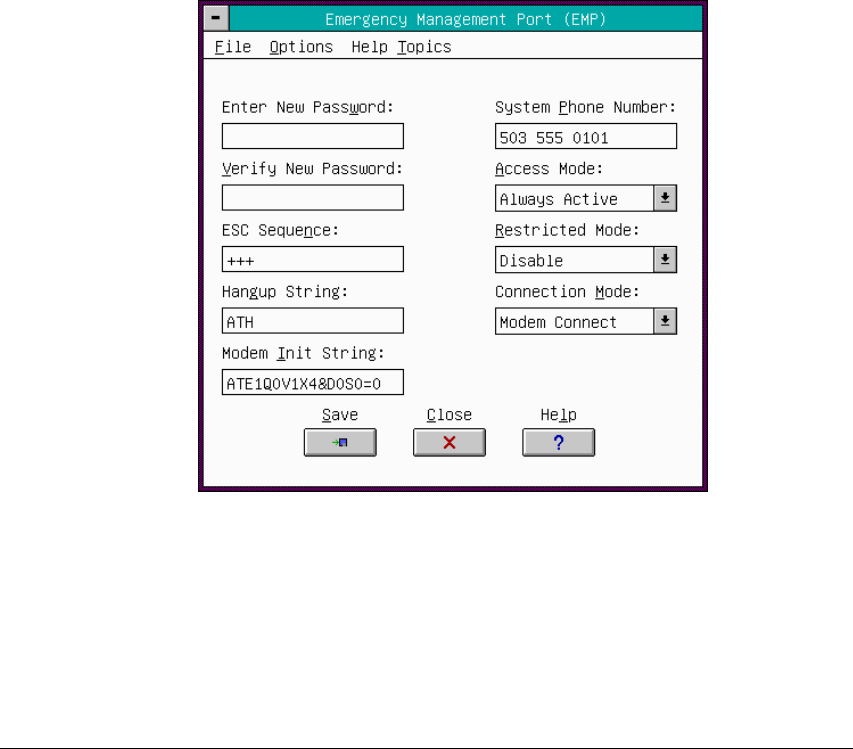

Figure 47: Emergency Management Port Dialog

File

The File menu has the following options:
