Viglen SX220 User Guide 35

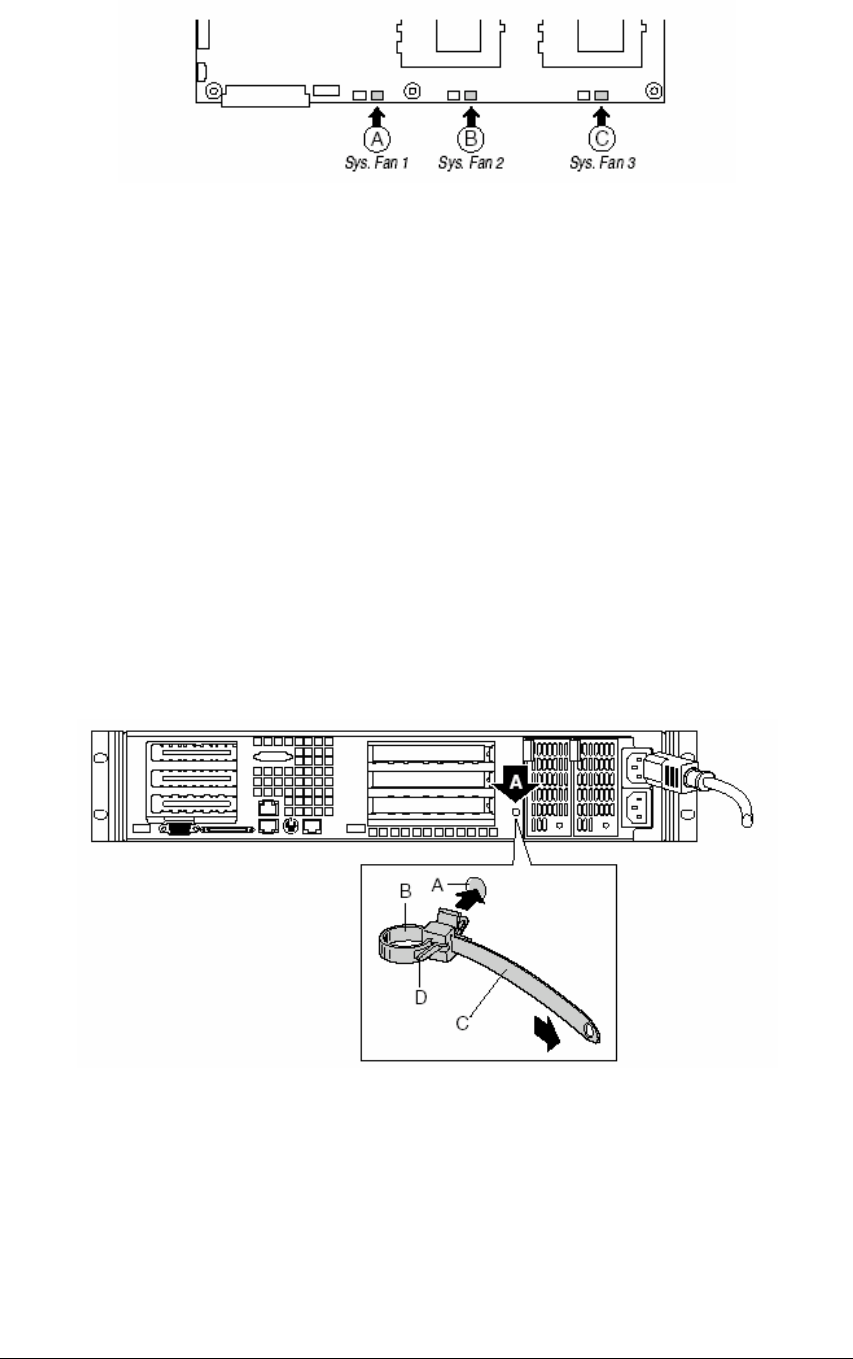

Figure 14: System Fan Connectors

6. Connect the USB cable to the 10-pin USB connector on the server board (Figure

4, Position L on page 13).

Installing the Power Cord and Strain Relief Strap

NOTE: If you will be placing your server in a rack, wait to install the power cord until

after the server is in the rack.

1. Insert the expansion nipple (A) of the strain relief strap into the chassis hole.

2. Plug the power cord into the power supply but not into the power source.

3. Insert the power cord into the plastic loop (B) of the strain relief.

4. Pull the plastic band (C) until it tightens around the power cord.

To release the plastic loop and free the cord, squeeze the release lever (D).

Figure 15: Installing the Power Cord
