Intel® Xeon® Processor 3500 Series Datasheet Volume 1 35

Package Mechanical Specifications

3.6 Processor Mass Specification

The typical mass of the processor is 35g. This mass [weight] includes all the

components that are included in the package.

3.7 Processor Materials

Ta b le 3 -3 lists some of the package components and associated materials.

3.8 Processor Markings

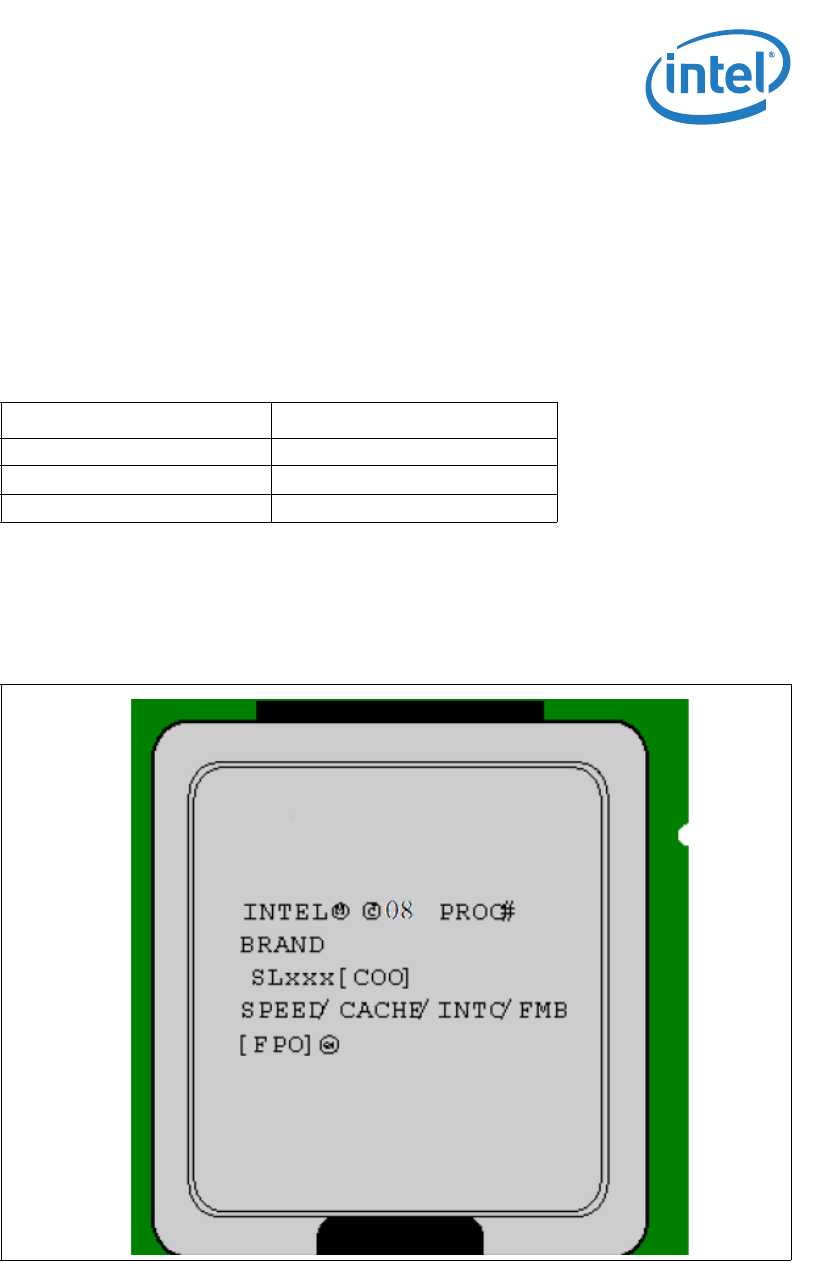

Figure 3-4 shows the topside markings on the processor. This diagram is to aid in the

identification of the processor.

Table 3-3. Processor Materials

Component Material

Integrated Heat Spreader (IHS) Nickel Plated Copper

Substrate Fiber Reinforced Resin

Substrate Lands Gold Plated Copper

Figure 3-4. Processor Top-Side Markings
