Package Mechanical Specifications

32 Intel® Xeon® Processor 3500 Series Datasheet Volume 1

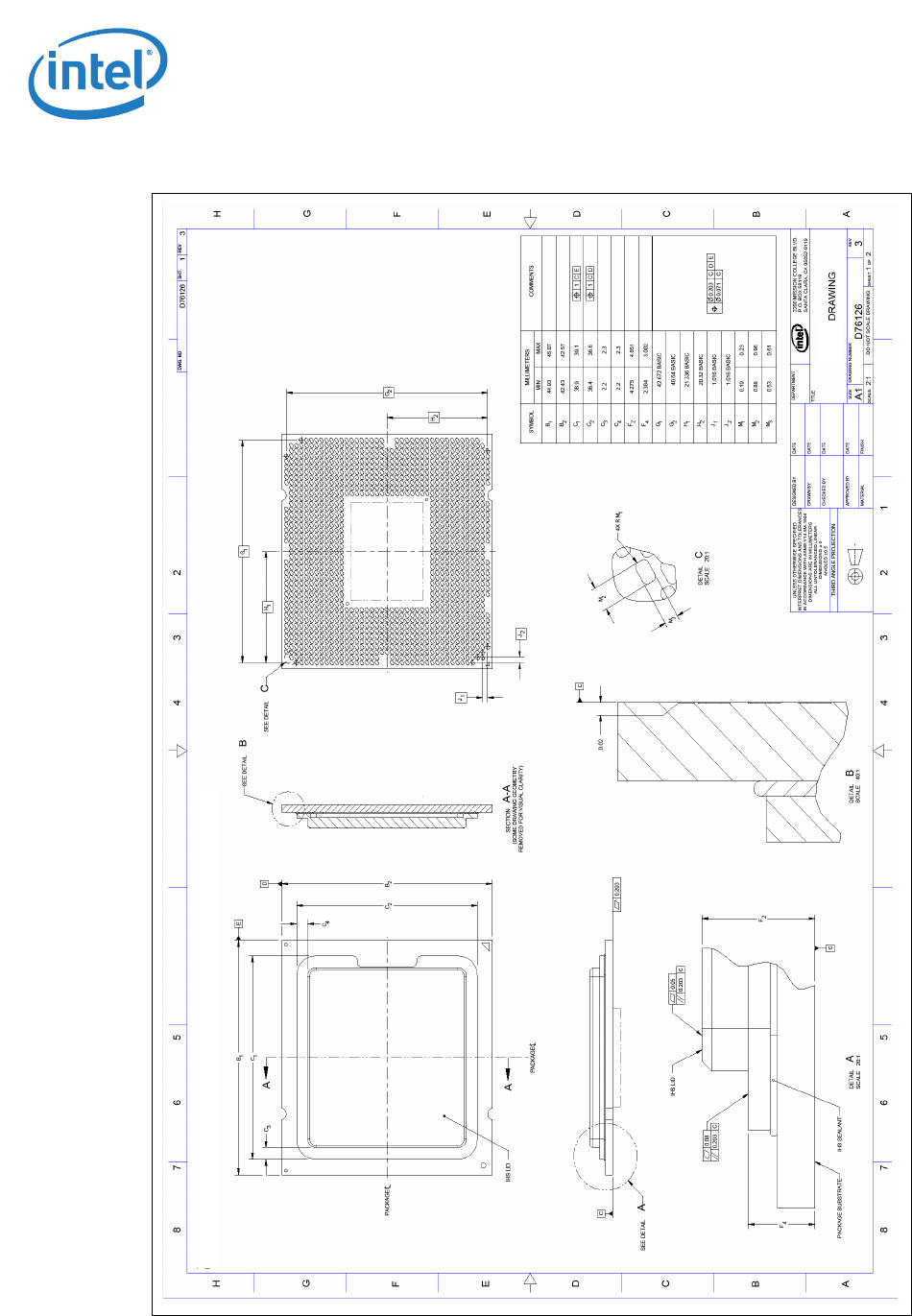

Figure 3-2. Processor Package Drawing (Sheet 1 of 2)

1 2 ... 27 28 29 30 31 32 33 34 35 36 37 ... 105 106

Processor 3500 Series 1
