Product Description

33

1.10.4 Thermal Monitoring

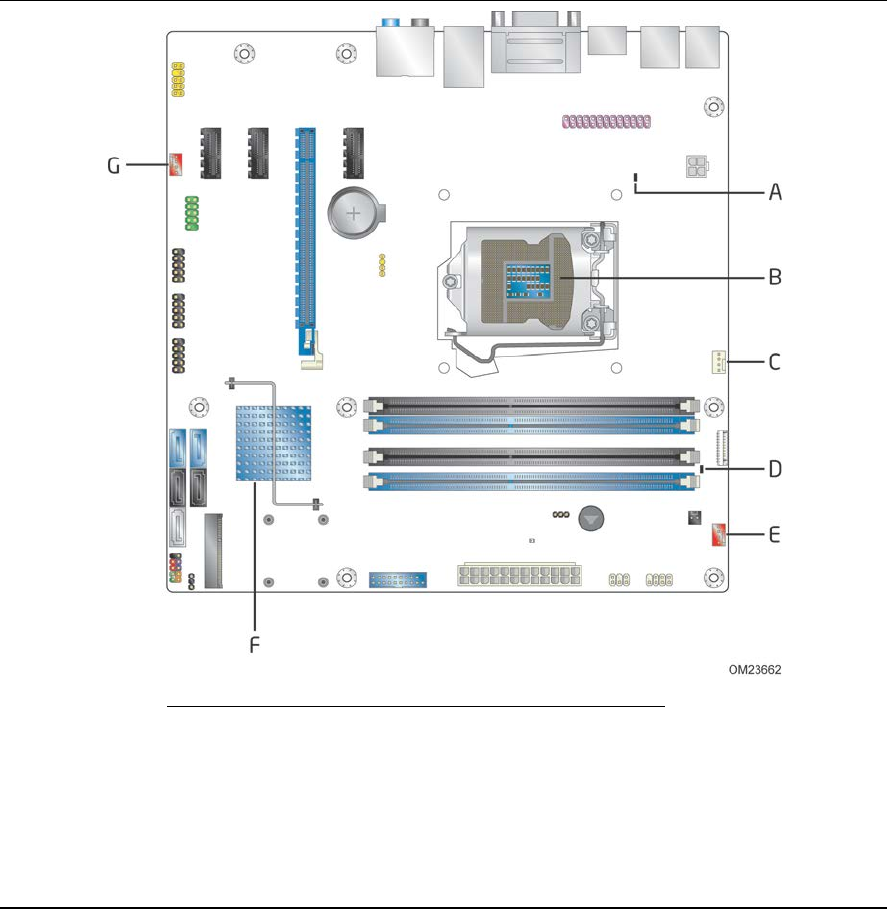

Figure 6 shows the locations of the thermal sensors and fan headers.

Item

Description

A Thermal diode, located on the VR zone

B Thermal diode, located on the processor die

C Front chassis fan header

D Thermal diode, located on the memory zone

E Processor fan header

F Thermal diode, located on the Intel H77 PCH

G Rear chassis fan header

Figure 6. Thermal Sensors and Fan Headers
