Intel Desktop Board DX58SO Product Guide

Connecting to the Internal Headers and

Connectors

Before connecting cables to any of the internal headers or connectors, observe the

precautions in “Before You Begin” on page 27. Figure 27 shows the location of the

internal headers and

connectors on Intel Desktop Board DX58SO.

Item Description Item Description

A Front panel audio F IEEE 1394a

B HD Audio Link G USB 2.0 (2)

C Back panel CIR emitter (output) H Alternate front panel power LED

D Front panel CIR receiver (input) I Front panel

E Chassis intrusion J S/PDIF

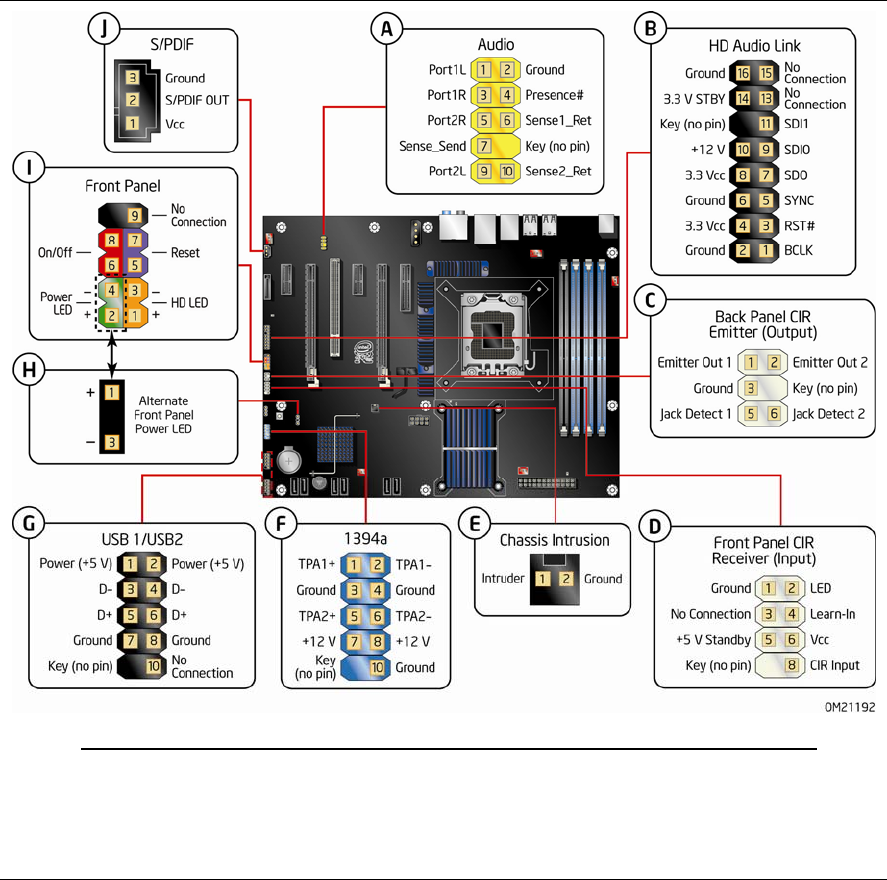

Figure 27. Internal Headers and Connectors
