Intel Desktop Board DX58SO Product Guide

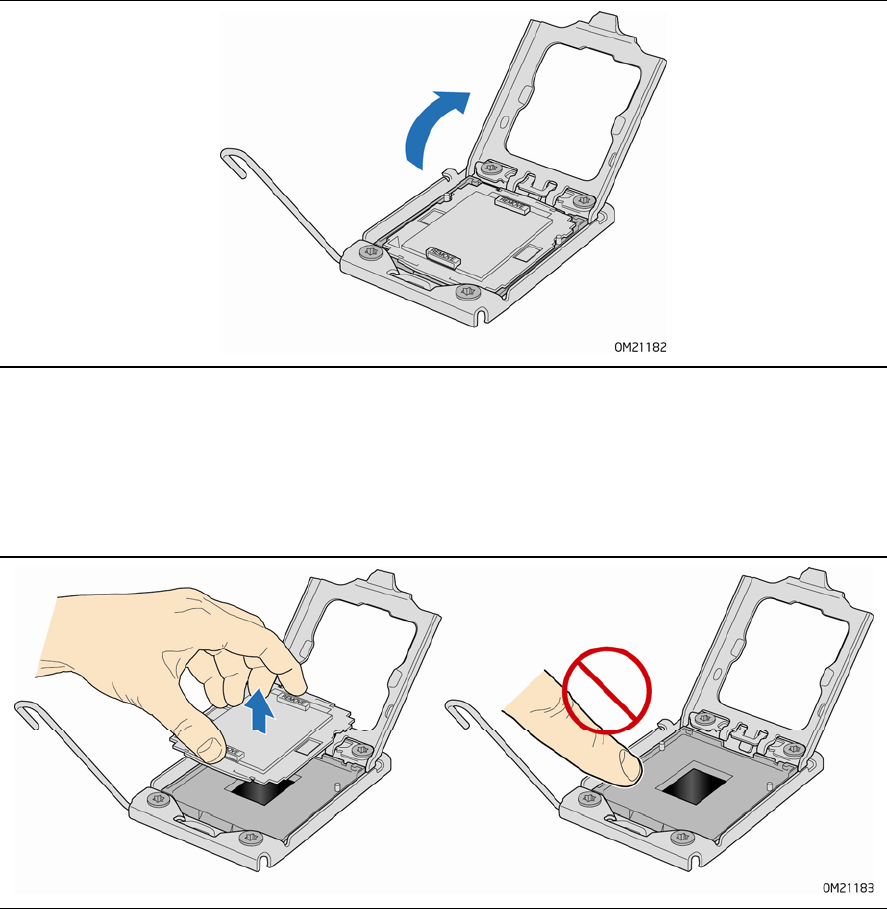

3. Lift the load plate as shown in Figure 10.

Figure 10. Lift the Load Plate

4. Remove the protective socket cover from the socket by grasping the cover and

lifting straight up as shown in Figure 11. Do not touch the socket contacts.

Do no

t discard the protective socket cover. Be sure to always replace the cover if

the processor is removed from the socket.

Figure 11. Remove the Protective Socket Cover
