32 Intel NetStructure

MPRTM0020 Technical Product Specification – April 2006

RTM Management Architecture

• RTM Temp2

• RTM Temp3

• RTM Power Status

Table 15. Sensor Data Record for RTM

Sensor Name Description

Lower

Critical

Lower Non

Critical

Upper Non

Critical

Upper

Critical

RTM +1.8V For SAS Retimer 1.71 – – 1.89

RTM +3.3V For other Integrated Circuits 3.10 – – 3.47

RTM +3.3V SUS Early voltage for ADM1026 3.11 – – 3.46

RTM +5.0V For USB Interface 4.71 – – 5.23

RTM +5V SUS Early voltage for Hotswap LED 4.73 – – 5.25

RTM +12V Main voltage rail for other ICs/

peripherals

10.71 – – 13.10

RTM Temp 1 Internal ADM1026 (U3)

[see Figure 16 for location]

-5 – 70 75

RTM Temp 2 External Thermal Diode (Q3)

[see Figure 16 for location]

-5 – 70 75

RTM Temp 3 External Thermal Diode (Q2)

[see Figure 16 for location]

-5 – 70 75

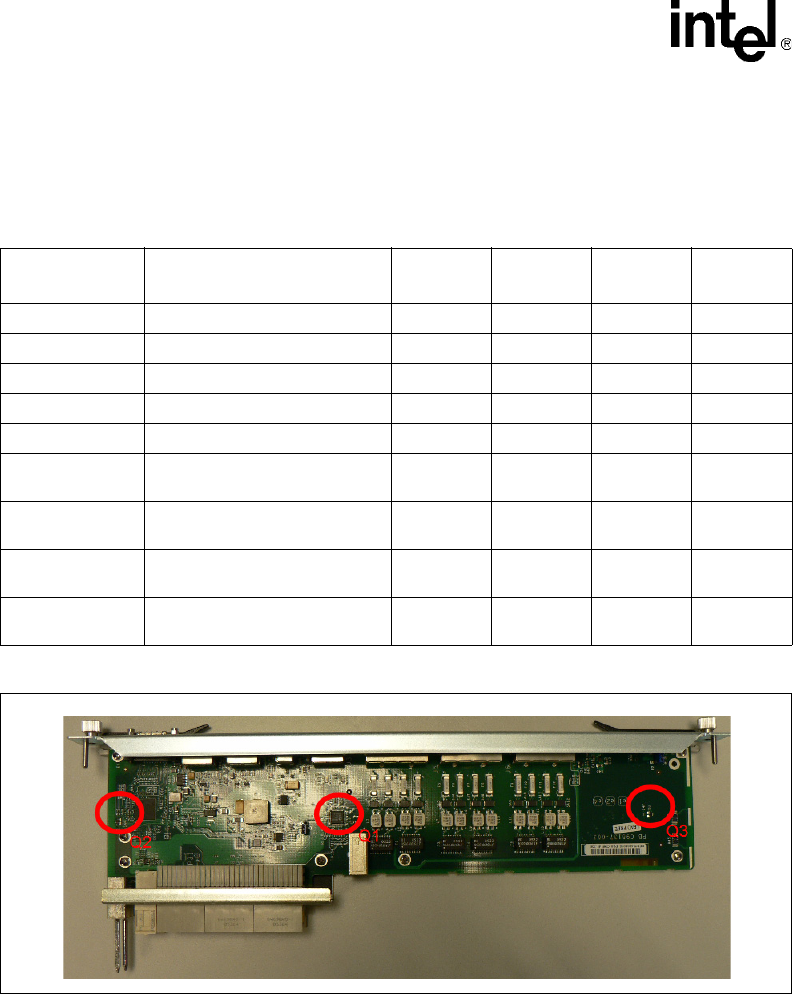

Figure 16. RTM Temperature Sensor Locations
