Intel® Solid-State Drive DC S3500 Series (M.2)

3.0 Mechanical Information

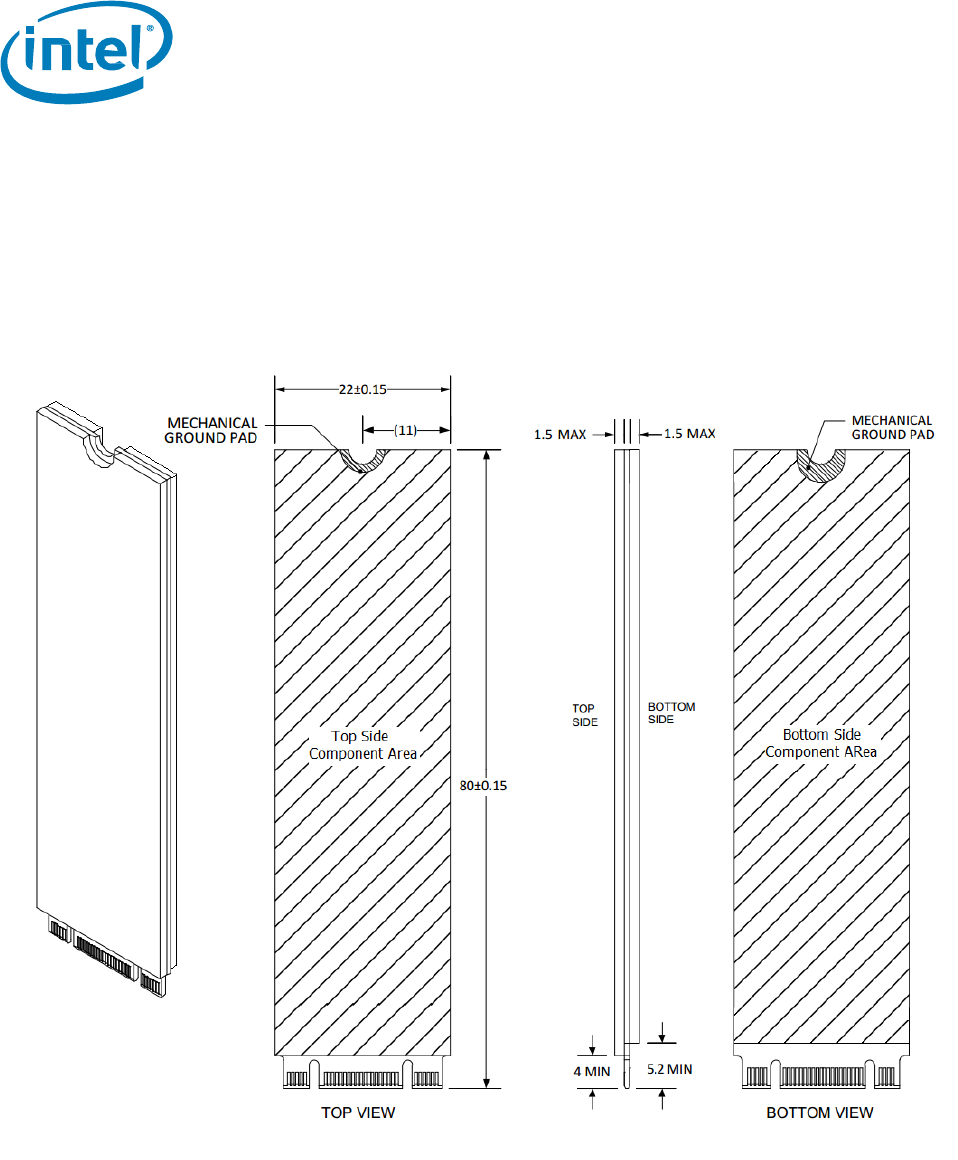

Figure 1 shows the physical information for the Intel SSD DC S3500 Series M.2 form factor type 2280-D5-BM.

All dimensions are in millimeters.

Figure 1: Intel SSD DC S3500 Series M.2 Dimensions

Product Specification Addendum January 2015

12 331061-002US
