Installing and Replacing Desktop Board Components

Setting the BIOS Configuration Jumper

NOTE

Always turn off the power and unplug the power cord from the computer before

moving the jumper. Moving the jumper with the power on may result in unreliable

computer operation.

Figure 19 shows the location of the Desktop Board’s BIOS confi

guration jumper block.

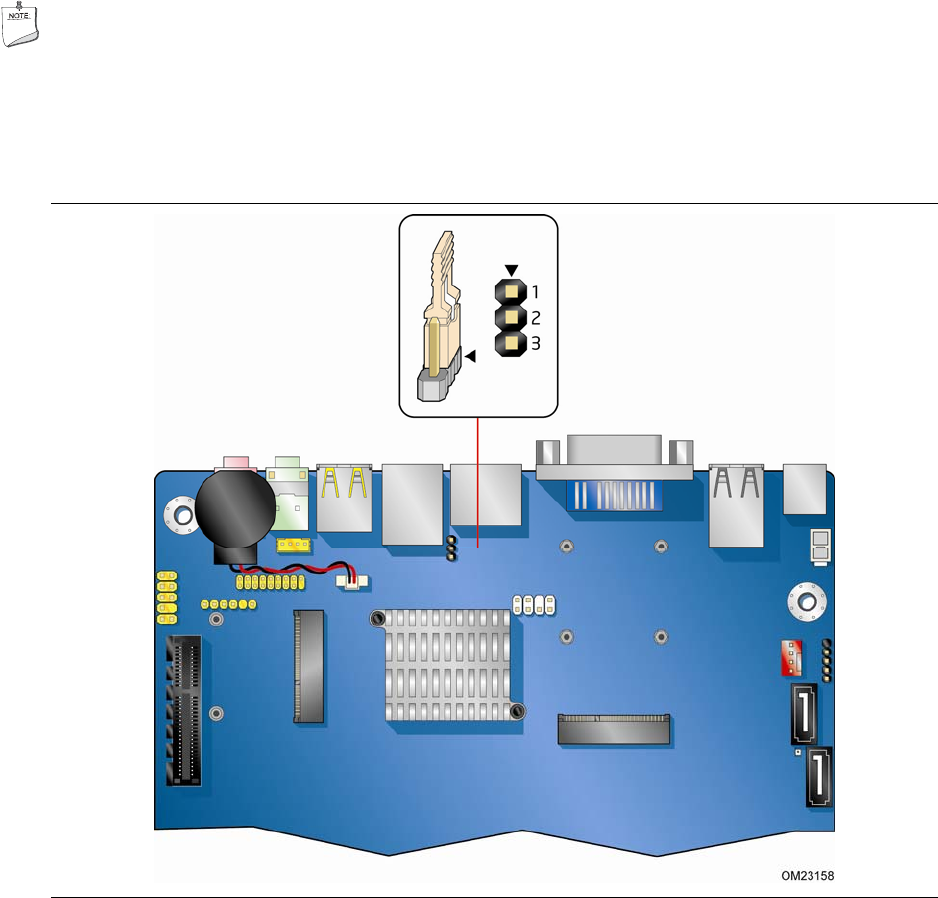

Figure 19. Location of the BIOS Configuration Jumper Block
