Intel Desktop Board DX58SO2 Product Guide

Connecting Chassis Fan and Power Supply

Cables

Connecting Chassis Fan Cables

Connect chassis fan cables to the chassis fan headers on the Desktop Board.

Figure 25 shows the location of the chassis fa

n headers.

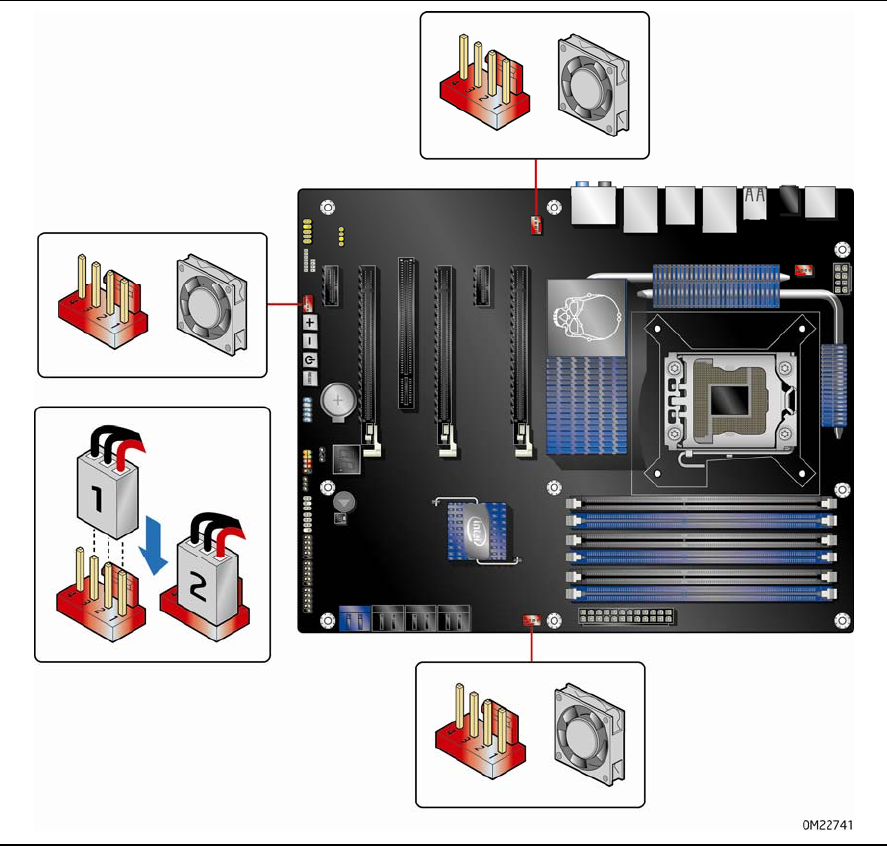

Figure 25. Location of the Chassis Fan Headers
