Intel Desktop Board DH61AG Product Guide

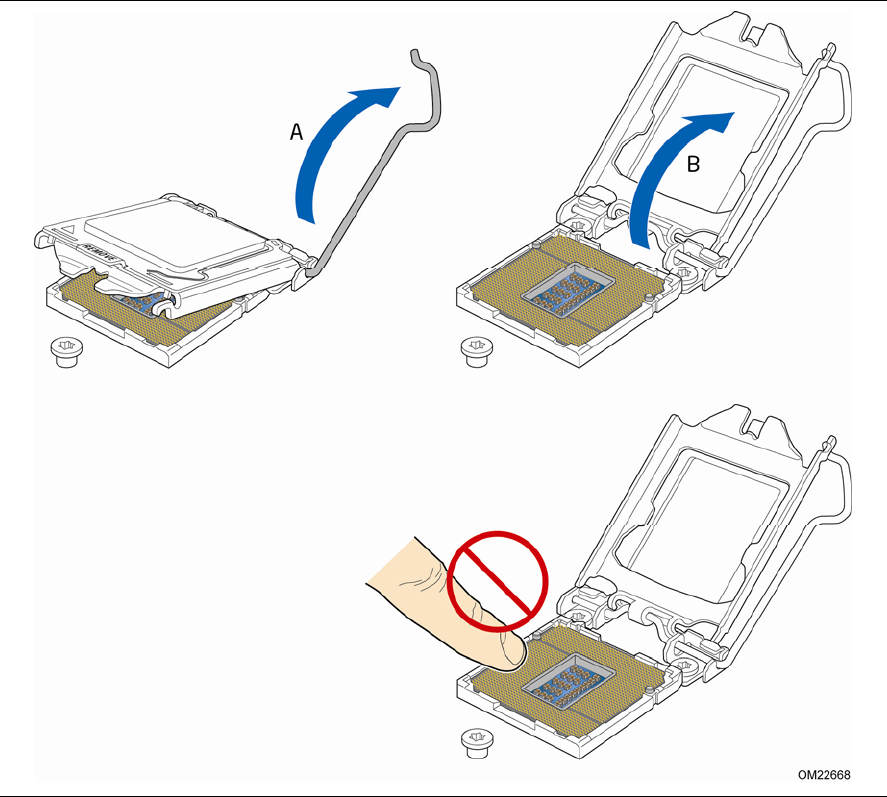

3. Rotate the socket lever to lift the load plate away from the socket (Figure 6, A).

Make sure that the load plate is in the fully open position (Figure 6, B) while being

careful not

to damage adjacent components. Do not touch the socket contacts.

Figure 6. Lift the Load Plate
