Hardware Setup 2-5

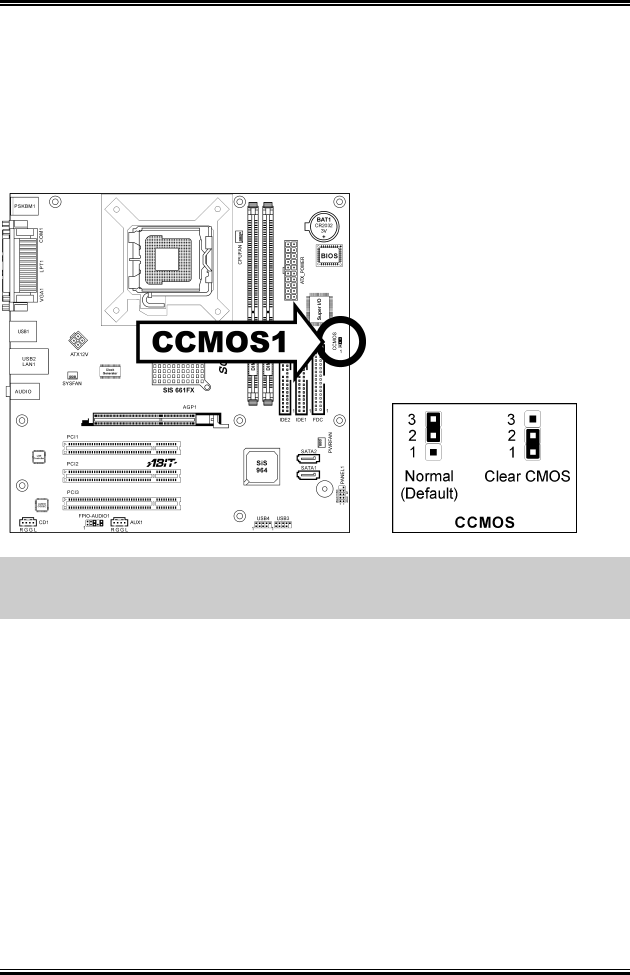

2.3.3. CMOS Memory Clearing Header (CCMOS)

This header uses a jumper cap to clear the CMOS memory.

• Pin 2-3 shorted (default): Normal operation.

• Pin 1-2 shorted: Clear CMOS memory.

ATTENTION: Turn the system power off first (including the +5V standby power)

before clearing the CMOS memory. Failing to do so may cause your system to work

abnormally or malfunction.

User’s Manual
